Watterott S65 Shield


Photo credits: unknown

Shield URL: S65 Shield
Tags: lcd, display, sd, storage
Maker: Watterott

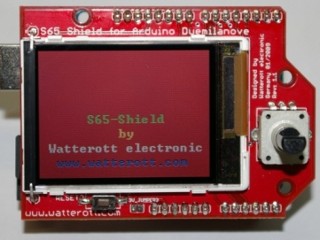

The S65 Shield features a color TFT-Display (176x132), microSD socket and rotary encoder.

Open Source: Yes, OSHW-compliant
License: CC BY-SA 3.0
Source: Unknown
AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
D13: SCK
D12: MISO
D11: MOSI
D9: SD_CS
D8: SD_POWER (low = power on)
D7: ENC_PhA
D6: ENC_PhB
D5: ENC_SWITCH
D4: LCD_RS
D3: NC (future use)
A0: NC (future use)
A1: NC (future use)
A2: LCD_CS
A3: LCD_RESET
