Watterott RedFly Shield

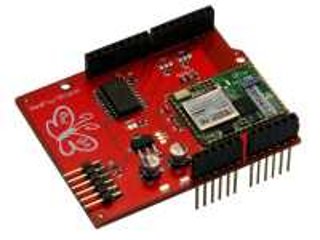

Photo: Watterott

Shield URL: RedFly Shield
Tags: wifi, network, communications
Maker: Watterott

WiFi/WLAN Shield.

Features:

  • IEEE 802.11b/g/n/i 2.4GHz
  • Wireless security: AES, WEP, WPA, WPA2 - PSK
  • Ad-hoc (IBSS) and Infrastructure mode (on Ad-hoc only WEP encryption)
  • Integrated WiFi and IPv4 stack (TCP, UDP)
  • Supports up to 8 sockets at the same time

Open Source: Unknown
License: Unknown
Source: Unknown

AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
