Sparkfun RFID Evaluation Shield - 13.56MHz

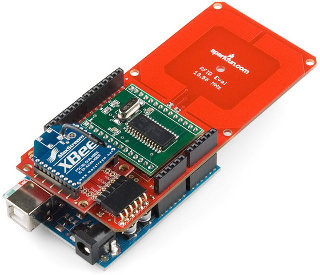

Photo: Sparkfun

Shield URL: RFID Evaluation Shield - 13.56MHz
Tags: rfid, communications
Maker: Sparkfun

Evaluation platform for the SM130 RFID module. Includes an XBee header, a PCB trace antenna, and a small prototyping area. This board can also be used as an antenna to the SM130 RFID module.

Open Source: No, not OSHW-compliant
License: Proprietary / closed source
Source: Unknown
License Note: Eagle design files are provided on the product page, but no license is specified.


				AREF
				GND
				D13 / SCK
				D12 / MISO
RESET				D11 / MOSI ~
3.3V				D10 / SS ~
5V				D9 ~
GND				D8
GND
VIN				D7
				D6 ~
A0				D5 ~
A1				D4
A2				D3 ~
A3				D2
A4				D1 / TX
A5				D0 / RX

Note:
Pins D2-D6 are connected to a header found right next to mount for RFID. Sparkfun also states the the silkscreen for the UART selection on early versions of the PCB is wrong, but all currently produced boards are correct.
