Sparkfun MP3 Shield

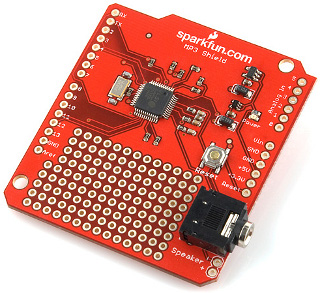

Photo: Sparkfun

Shield URL: MP3 Shield
Tags: audio, sound
Maker: Sparkfun

The MP3 Shield wires your Arduino up to a VS1053D MP3 audio decoder IC, providing it with the ability to decode audio files. The VS1053 is also capable of decoding Ogg Vorbis/MP3/AAC/WMA/MIDI audio and encoding IMA ADPCM and user-loadable Ogg Vorbis.

The VS1053 receives its input bitstream through a serial input bus (SPI). After the stream has been decoded by the IC, the audio is sent out to both a 3.5mm stereo headphone jack, as well as a 2-pin 0.1" pitch header.

Open Source: Unknown
License: Unknown
Source: Unknown


				AREF
				GND
				D13 / SCK
				D12 / MISO
RESET				D11 / MOSI ~
3.3V				D10 / SS ~
5V				D9 ~
GND				D8
GND
VIN				D7
				D6 ~
A0				D5 ~
A1				D4
A2				D3 ~
A3				D2
A4				D1 / TX
A5				D0 / RX

Note:
D0: TX
D1: RX
D2: BSYNC/XDCS
D3: DREQ
D4: GPIO2/DCLK
D5: GPIO3/SDATA
D9: CS/XCS
D11: MOSI
D12: MISO
D13: SCK
