Sparkfun ModKit MotoProto Shield

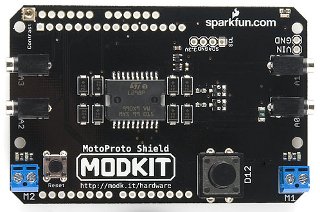

Photo: Sparkfun

Shield URL: ModKit MotoProto Shield
Tags: modkit, motor, output, control, sensors, lcd
Maker: Sparkfun

The Modkit MotoProto Shield for Arduino that makes it easy to connect up to 4 sensors and control two DC motors as well as a 16X2 character LCD. The sensor jacks accept 2.5mm cables and provide access to VCC, GND, and an analog input.

Open Source: Unknown
License: Unknown
Source: www.sparkfun.com/products/10018
License Note: The design files are made available as a PDF schematic and EAGLE project, but there is no mention of the license.

AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
D6-D11 are broken out for use with a 16x2 LCD screen.
