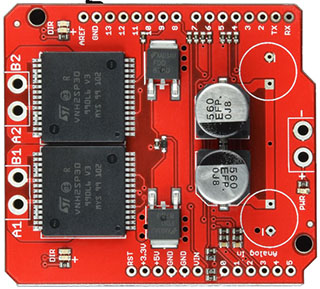

Sparkfun Monstor Moto Shield


Photo: Sparkfun CC BY-NC-SA 3.0

Shield URL: Monstor Moto Shield
Tags: motor, h-bridge
Maker: Sparkfun

High-current H-bridge using a pair of VNH2SP30 full-bridge motor drivers. VIN and motor out are pitched for 5mm screw terminals to suit large gauge wires.

Open Source: Yes, OSHW-compliant
License: CC BY-SA 3.0
Source: Unknown

AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
