Sparkfun microSD Shield

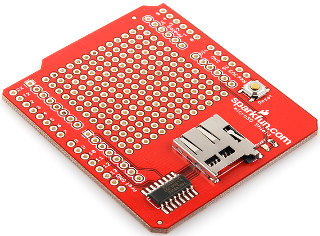

Photo: Sparkfun Electronics

Shield URL: microSD Shield
Tags: sd, storage, flash, memory
Maker: Sparkfun

The microSD Shield equips your Arduino with mass-storage capability, so you can use it for data-logging or other related projects.

Open Source: Yes, OSHW-compliant
License: CC BY-SA 3.0
Source: www.sparkfun.com/datasheets/DevTools/...

AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
SPI protocol on D8, D11, D12, D13.

SS is on D8 and not on the usual D10.

Warning: D10 is not used directly by the shield, but it must still be set to OUTPUT mode to prevent problems with the SPI library. You can however use it as the chip select pin for another SPI device if required. The requirement for the pin to be set as an output is a result of how SPI Master / Slave on the ATmega works. The sdfatlib now handles that automatically if you initialise it with a pin other than D10 as CS.
