Sparkfun Color LCD Shield

Shield URL: Color LCD Shield
Tags: lcd, display
Maker: Sparkfun

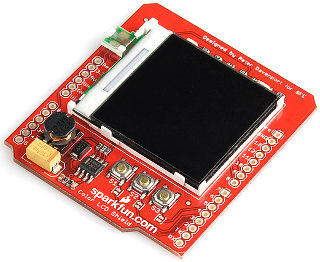

Includes the Nokia 6100 128x128 mini color LCD and a backlight driver circuit that boosts to 7V, and three momentary push-buttons tied through jumpers to pins D3, D4, and D5.

Open Source: Unknown
License: Unknown
Source: Unknown

Note:
The Nokia 6100 LCD is controlled through a 9-bit SPI interface. The control pins of the LCD are connected to the hardware SPI pins of the Arduino D13/SCK, D11/DIO), the CS pin is tied to D9 and the reset pin is connected to D8. Voltage from the '5V' pin of the Arduino is boosted to 7V to power the LCD backlight.
