Schmelle2 Power Shield

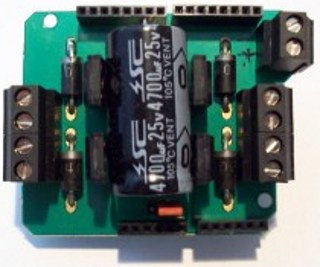

Photo: Schmelle2

Shield URL: Power Shield
Tags: output
Maker: Schmelle2

Shield contains 4 Power HEXFET MOSFET Transistors IRLIZ44N used by 4 PWM channels of Arduino.

Open Source: Yes, OSHW-compliant
License: CC BY-SA 3.0
Source: http://schmelle2.de/wp/wp-content/upl...
AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
Maximum is 5.5A for each MOSFET.
