Schmelle2 BaroTemp Shield

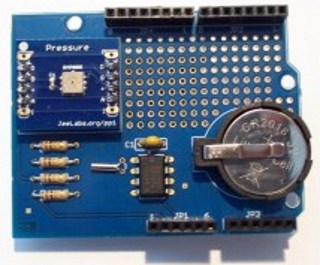

Photo: Schmelle2

Shield URL: BaroTemp Shield
Tags: pressure, temperature, sensor
Maker: Schmelle2

Shield contains the Maxim DS1307 Clock and the air pressure and temperature sensor BMP085 manufactured by Bosch Sensortec.

Open Source: Yes, OSHW-compliant
License: CC BY-SA 3.0
Source: http://schmelle2.de/wp/wp-content/upl...
AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
Pin D2 is optional. The is a solderpad to activate the external interrupt by the RTC.
