Liquidware TouchShield Stealth

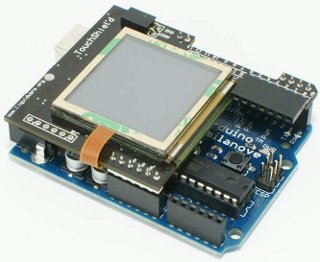

Photo: Liquidware

Shield URL: TouchShield Stealth
Tags: lcd, display
Maker: Liquidware

  • 128x128 OLED Screen.
  • Resistive Touch Screen.
  • Only uses Arduino pins D2 and D3.
  • Draw Shapes, Pixels, Colors, Graphs, Buttons with complete ease, using a SubProcessing graphics API.

Open Source: Unknown
License: Unknown
Source: Unknown
AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
