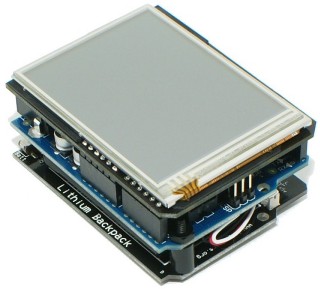

Liquidware TouchShield Slide


Photo credits: unknown

Shield URL: TouchShield Slide
Tags: lcd, display, touch
Maker: Liquidware

  • 320x240 OLED Screen.
  • Resistive Touch Screen.
  • Storage for 4 full resolution images or 60 128x128 images.
  • Only uses Arduino pins D2 and D3.
  • Draw Shapes, Pixels, Colors, Graphs, Buttons with complete ease, using a SubProcessing graphics API.

Open Source: Unknown
License: Unknown
Source: Unknown
