Liquidware Mega Lithium Backpack

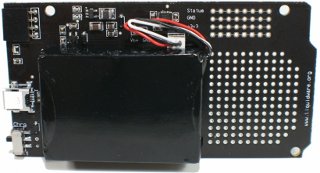

Photo: Liquidware

Shield URL: Mega Lithium Backpack
Tags: battery, power, prototyping
Maker: Liquidware

Shield-format battery pack and charger circuit that fits either under or over an Arduino Mega. Includes prototyping area.

Open Source: Unknown
License: Unknown
Source: Unknown
