Lars Schumann LED Cube3 Shield

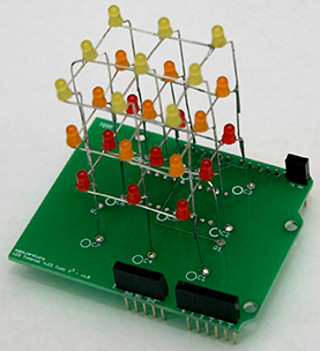

Photo: Lars Schumann

Shield URL: LED Cube3 Shield
Tags: led, output
Maker: Lars Schumann

This shield makes it easy to build a 3D cube using 27 LEDs.

Open Source: Yes, OSHW-compliant
License: CC BY-SA 3.0
Source: github.com/larsi-org/LED-Cube3

AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
9 digital pins for the columns and 3 digital pins for the rows.
