Lars Schumann LED 6x5 Shield

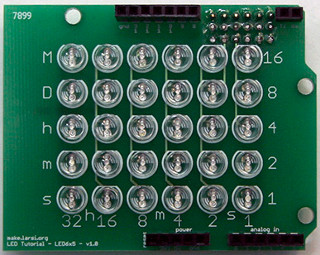

Photo: Lars Schumann

Shield URL: LED 6x5 Shield
Tags: led, output
Maker: Lars Schumann

30 LEDs arranged in a 6 x 5 matrix so they can be Charlieplexed.

Open Source: Yes, OSHW-compliant
License: CC BY-SA 3.0
Source: github.com/larsi-org/LED-6x5
AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
30 LEDs need 6 digital pins.
