Dreaming Robots Camera Axe 5 Shield

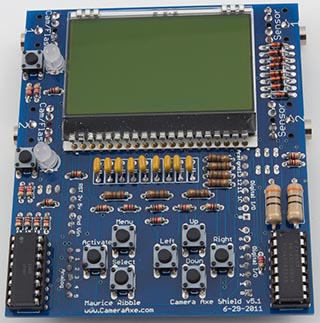

Photo: Dreaming Robots

Shield URL: Camera Axe 5 Shield
Tags: camera, lcd
Maker: Dreaming Robots

Turns your Arduino into a powerful photography triggering system. Common uses are photographing lightning, shooting bullets, liquid droplets, and wildlife.

Features:

  • Two sensor ports
  • Two camera/flash ports
  • 9 buttons to control menus
  • 128x64 backlit LCD

Open Source: No, not OSHW-compliant
License: CC BY-NC 3.0
Source: www.cameraaxe.com/files/ca5/eagleCA5S...
AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
A0: Buttons
A1: Sensor 1 power
A2: Sensor 1
A3: Sensor 1 tip
A4: Sensor 2
A5: Sensor 2 tip

D2: Button act
D3: Camera 1 shutter
D4: Camera 1 focus
D5: Camera 2 shutter
D6: Camera 2 focus
D7: Sensor 2 power

D8: LCD backlight
D9: LCD A0
D10: LCD CS
D11: LCD SI
D12: Reserved LCD
D13: LCD SCL
