Yawp Patch Shield v5.0


Photo credits: unknown

Shield URL: Patch Shield v5.0
Tags:
Maker: Yawp

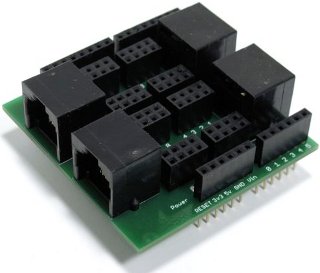

The patch shield is a cross between a patch panel/bay and a Wingshield. It's designed for times when you want to have remote sensors, or a control panel, or LEDs, or...practically anything where you want to avoid doing a lot of icky wiring!

The origins of this shield are unclear. It appears to originate at the site linked above. For kit information see:

http://www.adafruit.com/index.php?main_page=product_info&cPath=17_21&products_id=256

Open Source: Yes, OSHW-compliant
License: CC BY-SA 2.5
Source: Unknown
License Note: As far as I can see the maker intends for this to be Open Source, but I can't find the source files themselves anywhere.
AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
No pins are reserved by the shield: it simply breaks them all out to connectors.
