SpikenzieLabs Drum Kit-Kit

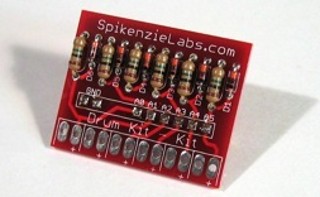

Photo: SpikenzieLabs

Shield URL: Drum Kit-Kit
Tags: input, music, audio
Maker: SpikenzieLabs

The Drum Kit - Kit lets you turn your Arduino into a drum kit.

Open Source: Unknown
License: Unknown
Source: Unknown
AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
This is a 'mini shield' that sits on top of the analog pins. The digital pins are still available for your own personal hacking.
