SonikTech SENPAI Shield


Photo credits: unknown

Shield URL: SENPAI Shield
Tags:
Maker: SonikTech

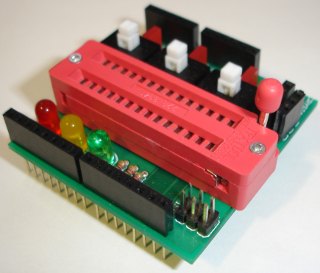

AVR Multiprogrammer. Allows you to burn ATMega and ATTiny chips using your Arduino.

Open Source: No, not OSHW-compliant
License: CC BY-NC-SA 3.0
Source: Unknown
AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
SS, MOSI, MISO, and SCK pins are used for programming. D7, D8, and D9 are optional, and are used for troubleshooting the programmer.
