Snootlab Le Deuligne Shield

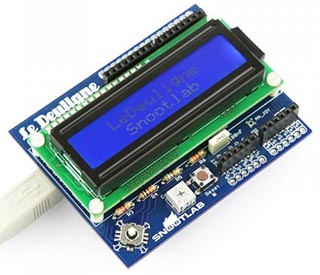

Photo: Snootlab

Shield URL: Le Deuligne Shield
Tags: lcd, joystick
Maker: Snootlab

LCD shield with:

  • 16x2 LCD with I2C interface
  • 5 position digital joystick (up, down, left, right, action)
  • I2C managed adjustable back-light

Open Source: Yes, OSHW-compliant
License: CC BY-SA 3.0
Source: http://shop.snootlab.com/attachment.p...
AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
A0 for joystick (configurable)
A4/A5 for I2C communication with LCD
