Arduino Shield List

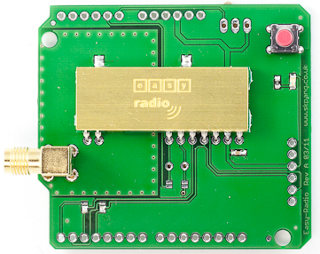

SK Pang Electronics EasyRadio Shield

Shield URL: EasyRadio Shield
Tags: wireless, communication
Maker: SK Pang Electronics

Gives your Arduino simple wireless commumication. The embedded easy-Radio firmware handles all encode/decode functions and over air transmission of data.

Features:

• Available in 434MHz or 868MHz

• Right angle SMA antenna connection

• User programmable frequency

• User programmable power output

• User programmable data rate

• Power output 868MHz Europe 5mW. USA 1mW, 434MHz 10mW

• Range

  • 868MHz - excess of 150m line of sight

  • 434MHz - excess of 250m line of sight


• All user options via software commands, no mechanical changes

• Compliant with ETS-300-220-3 & R&TTE directive

• RSSI output - connected to A1 via solder joint

Open Source: No, not OSHW-compliant
License: Proprietary / closed source
Source: Unknown
License Note: Schematic provided as a PDF under CC BY-SA 3.0, but I could not find any design files
