Shieldstudio QuadMotor Shield

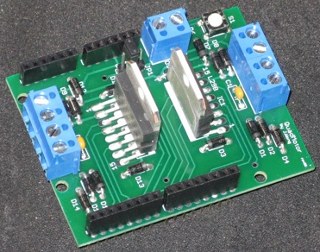

Photo: Shieldstudio

Shield URL: QuadMotor Shield
Tags: motor, control, output, h-bridge
Maker: Shieldstudio

Controls DC motors.

  • Multiple outputs: The board uses a pair of L293 Dual H-Bridge driver circuits to drive up to 4 separate DC motors.
  • High Power: The QuadMotor shield uses the L298 to allow a motor supply voltage of up to 46V and a DC current of up to 4A DC on an individual channel.
  • Built in protection: On-board reverse voltage protection diodes are provided using discrete 1N5819 Schottky diodes.

Open Source: Unknown
License: Unknown
Source: Unknown

AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
