Shieldstudio 4-Digit Shield

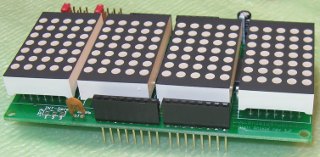

Photo: Shieldstudio

Shield URL: 4-Digit Shield
Tags: display, led
Maker: Shieldstudio

A 4-digit LED matrix display with built-in ASCII 104-character font and 24 user-definable characters.

Open Source: Unknown
License: Unknown
Source: Unknown

AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
A4: I2C SDA
A5: I2C SCL
D2 & D3: optional interrupt input pins.
