Seeed Studio Wiznet Ethernet Shield

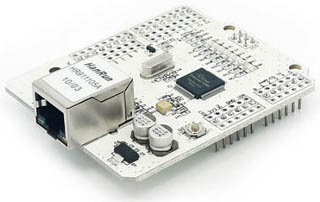

Photo: Seeed Studio

Shield URL: Wiznet Ethernet Shield
Tags: ethernet, network
Maker: Seeed Studio

Ethernet shield based on the Wiznet W5100 ethernet chip. Compatible with official Arduino Ethernet library and with added support for the Arduino Mega.

Open Source: Unknown
License: Unknown
Source: Unknown


				AREF
				GND
				D13 / SCK
				D12 / MISO
RESET				D11 / MOSI ~
3.3V				D10 / SS ~
5V				D9 ~
GND				D8
GND
VIN				D7
				D6 ~
A0				D5 ~
A1				D4
A2				D3 ~
A3				D2
A4				D1 / TX
A5				D0 / RX

Note:
Same as for orginal, with support for MEGA
