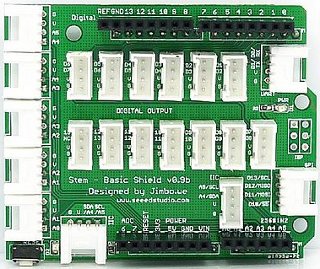

Seeed Studio Stem Base Shield


Photo credits: unknown

Shield URL: Stem Base Shield
Tags:
Maker: Seeed Studio

Stem is the new version of Electronic Brick Shield. All connections have been standardized onto 4 pins( Signal 1, Signal 2, VCC, and GND) 2mm connectors, which simplify the wiring of electronics projects.

Open Source: Unknown
License: Unknown
Source: Unknown
AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
No pins specifically used: all broken out for Stem connectors.
