Seeed Studio SD Card Shield

Shield URL: SD Card Shield
Tags: sd, flash, storage
Maker: Seeed Studio

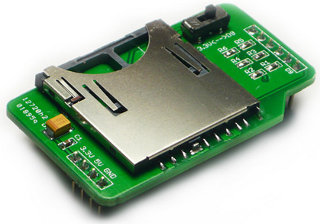

The SD Card Shield is a breakout board for a standard SD card.

This is the 3rd version of Seeed Studio SD card shield: compared to previous versions it has the TF card adapter removed to avoid data error when SD and TF card were both inserted, and an additional filter capacitor was added to reduce power supply ripple. You can select 3.3V or IO port power supply with the switch on board in order to work with different library.

Note: SDHC is not supported.

Open Source: Unknown
License: Unknown
Source: Unknown

Note:
D9: PWR
D10: CS
D11: DI
D12: D0
D13: CLK
