Seeed Studio ProtoShield Remixed v1.0

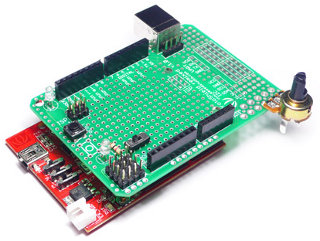

Photo: Seeed Studio

Shield URL: ProtoShield Remixed v1.0
Tags: prototyping
Maker: Seeed Studio

Large prototyping area. Features:

  • USB B type soldering hole
  • Free drill hole matrix of 32/50/80mil
  • Breadboard style strip
  • UART pinout sets
  • I2C pinout sets
  • 5V/GND/3V3 power rail
  • Free button
  • Reset button pinout
  • Pin13 LED pinout
  • Jack hole for potienmeter, power jack and etc
  • Bread board compatible

Open Source: Yes, OSHW-compliant
License: CC BY-SA 3.0
Source: garden.seeedstudio.com/index.php?titl...
License Note: The wiki page notes it's CC-BY-SA 3.0, but only the .brd file is provided.

AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
No pins specifically reserved, all available for user projects.
