Seeed Studio Electronic Brick Chassis v1.1

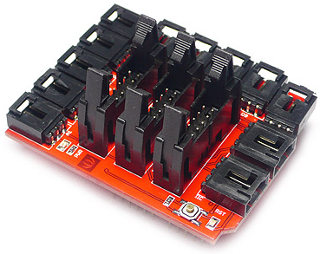

Photo: Seeed Studio

Shield URL: Electronic Brick Chassis v1.1
Tags:
Maker: Seeed Studio

The Electronic Brick Chassis Shield allows easy connection of Seeed Studio "Electronic Brick" devices.

Open Source: Unknown
License: Unknown
Source: Unknown

AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
This shield is primarily a breakout board for alternative connectors, so it provides access to all I/O lines but does not necessarily require any of them in particular. You can use as many or as few of the pins as you like.
