Samurai Circuits Cool Neon Shield

Shield URL: Cool Neon Shield
Tags: output
Maker: Samurai Circuits

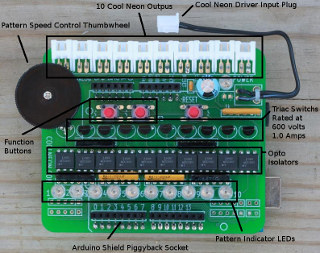

10 channel electroluminescent wire (EL wire) controller. Works in combination with an external CoolNeon driver. The Triacs used are rated for 600 volts at up to 1 amp, so should work with the biggest drivers. Also includes opto-isolation for complete isolation between the Arduino and the AC power lines.

• Pattern indicating LEDs.

• Pattern speed control thumwheel.

• Two input buttons.

Open Source: Unknown
License: Unknown
Source: Unknown

Note:
Unfortunately no schematics provided by the manufacturer.

All of the I/O ports are fully reconfigurable, with designated places on the bottom of the PCB to cut the traces and places to solder in new jumpers.
