Rugged Circuits Quick Shield

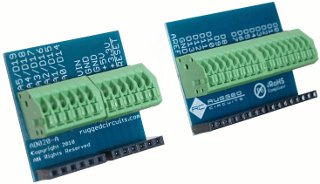

Photo: Rugged Circuits

Shield URL: Quick Shield
Tags: breakout, terminal
Maker: Rugged Circuits

The Quick Shield extends the connection pins out to 28 quick-connect terminals that accept 20AWG to 24AWG wire. Unlike screw terminals, these quick-connect terminals require no tools: just push, insert wire, and release. Stacking headers allow another shield to plug in on top and have access to all 28 pins. Use the Quick Shield for easy breadboarding, using shields standalone without an Arduino, or cross-wiring shield pins.

Open Source: No, not OSHW-compliant
License: Proprietary / closed source
Source: Unknown

AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
All 28 pins found on a Duemilanove/Uno are broken out:
D0-D13
A0-A5
AREF
3 x GND
5V
3.3V
RESET
VIN
