Rugged Circuits Flexible MIDI Shield

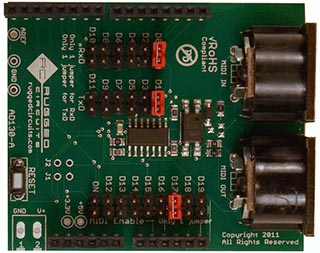

Photo: Rugged Circuits

Shield URL: Flexible MIDI Shield
Tags:
Maker: Rugged Circuits

MIDI IN and MIDI OUT connections, flexible choice of which I/O pins are assigned to each connector, switch-less uploading of sketches, opto-isolated and protected MIDI ports.

Open Source: No, not OSHW-compliant
License: Proprietary / closed source
Source: Unknown
License Note: Schematic is provided as a PDF. No licence stated, no source files available.


				AREF
				GND
				D13 / SCK
				D12 / MISO
RESET				D11 / MOSI ~
3.3V				D10 / SS ~
5V				D9 ~
GND				D8
GND
VIN				D7
				D6 ~
A0				D5 ~
A1				D4
A2				D3 ~
A3				D2
A4				D1 / TX
A5				D0 / RX

Note:
Any ONE of pins D0,D2,D4,D6,D8,D10 are used for MIDI IN. Any ONE of pins D1,D3,D5,D7,D9,D11 are used for MIDI OUT. Any ONE of pins D12-D19 can be used for MIDI enable, or MIDI can be always enabled through the \"ON\" jumper.
