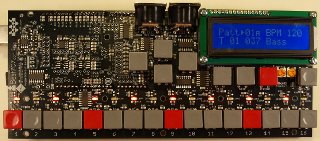

Rugged Circuits Beat707 Shield

Shield URL: Beat707 Shield
Tags: midi, music, sound, lcd
Maker: Rugged Circuits

32 step machine, (plus 32 double-steps for a total of 64 steps) with 16 step buttons and LEDs, LCD screen and navigation keys. It\'s like the classic Roland TR707 but with some twists, as it actually has 64 x 1/32 or 32 x 1/64 steps. The 2 note-step sequence feature allows you to do bass and/or synth grooves. The unit doesn\'t produce any sound, it\'s all MIDI based, so you can use any MIDI compatible device.

Open Source: No, not OSHW-compliant
License: Proprietary / closed source
Source: www.beat707.com/w/downloads/software-...
License Note: The site states that the design is open source, but the design files state that all rights are reserved and no license is mentioned.
