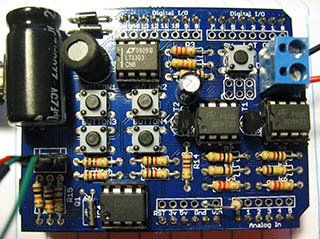

Ray's Hobby Water Valve Shield


Photo credits: unknown

Shield URL: Water Valve Shield
Tags:
Maker: Ray's Hobby

Allows control of water valve solenoids for automated watering, irrigation, aquaponics, etc.

Includes 24V solenoid output, DS1337 real-time clock, and input buttons.

Open Source: Unknown
License: Unknown
Source: https://docs.google.com/leaf?id=0B1wC...
License Note: Web page says "Feel free to use it and/or modify it, but be kind to give me some credit for it :)". There is no specific license stated.

AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
D3: INT1 (DS1337)
D4: Enable 24v Boost Circuit for Solenoid
D7: Open Valve
D8: Close Valve
A0: Button Pad Matrix
A4: SDA (DS1337)
A5: SCL (DS1337)
