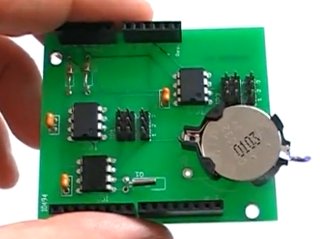

Practical Maker RTC / EEPROM Shield

Photo credits: unknown

Shield URL: RTC / EEPROM Shield
Tags: rtc, eeprom
Maker: Practical Maker

Includes 1 DS1307 RTC and 2 x 32k EEPROM chips.

Open Source: Unknown
License: Unknown
Source: www.practicalmaker.com/sites/default/...


				AREF
				GND
				D13 / SCK
				D12 / MISO
RESET				D11 / MOSI ~
3.3V				D10 / SS ~
5V				D9 ~
GND				D8
GND
VIN				D7
				D6 ~
A0				D5 ~
A1				D4
A2				D3 ~
A3				D2
A4				D1 / TX
A5				D0 / RX

Note:
I2C bus + 2 analog pins
