Practical Maker Breakout Board Shield

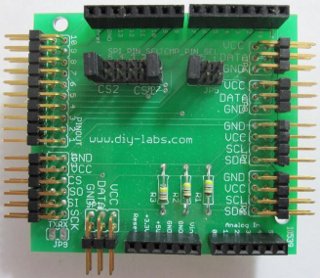

Photo: Practical Maker

Shield URL: Breakout Board Shield
Tags: i2c, spi, onewire, breakout
Maker: Practical Maker

I2C / SPI / OneWire breakout.

  • 90 degree pins to make it easily stackable
  • I2C bus is pulled high
  • Onewire bus is pulled high
  • 4 x I2C Hookups
  • 6 x Onewire Hookups
  • 2 x SPI hookups
  • D2 - D11 are pinned out
  • Onewire can be on pins D2, D3, D4 (jumper)
  • SPI CS pin can be D5, D6, D7 OR D8, D9, D10

Open Source: Yes, OSHW-compliant
License: CC BY-SA 3.0
Source: www.practicalmaker.com/tutorials/brea...
