Open Electronics GSM Shield

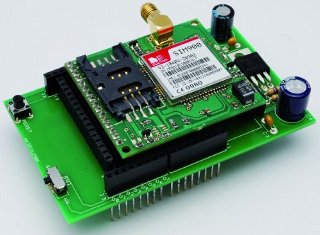

Photo: Open Electronics

Shield URL: GSM Shield
Tags: gsm, gprs, communications
Maker: Open Electronics

Simple GSM / GPRS shield.

Features:

  • QuadBand: 850/ 900/ 1800/ 1900 MHz
  • GPRS multi-slot class 10/8
  • GPRS mobile station class B
  • Compliant with GSM phase 2/2+:
    • Class 4 (2 W @850/ 900 MHz)
    • Class 1 (1 W @ 1800/1900 MHz)

Open Source: No, not OSHW-compliant
License: Proprietary / closed source
Source: Unknown

AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
Uses serial communications on either D0/D1 or on D4/D5, selectable on the shield.
