Ocean Controls K-Thermocouple Multiplexer Shield

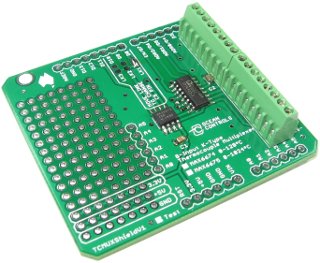

Photo: Ocean Controls

Shield URL: K-Thermocouple Multiplexer Shield
Tags: thermocouple, sensor, input
Maker: Ocean Controls

The TCMux Shield combines a MAX6675 and Multiplexer to allow up to 8 K-Type Thermocouples to be connected to an Arduino.

Open Source: Unknown
License: Unknown
Source: Unknown
AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
D8, D9, D10 are used for /CS line of MAX6675, 0 ohm link selectable.
D4-D7 are multiplexer addressing and enable.
A0-A5 are broken out for the prototyping area.
