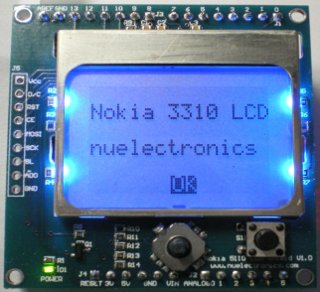

Nu Electronics Nokia 3310 LCD Shield With Joystick


Photo credits: unknown

Shield URL: Nokia 3310 LCD Shield With Joystick
Tags: lcd, display, joystick, input, output
Maker: Nu Electronics

Nokia 3310 LCD is low-cost, monochrome LCD with 84x48 display.

  • Uses the popular Nokia 3310 LCD, monochrome, 84x48 pixels.
  • Has 4 blue LED backlight for the LCD.
  • Has a 5-direction Joystick, but only uses one ADC pin.

Open Source: Unknown
License: Unknown
Source: Unknown
AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
A0 - Joystick input
D7 - Backlight control
D8 - Data/Command selection
D9 - LCD Reset
