Nu Electronics Ethernet Shield v1.0

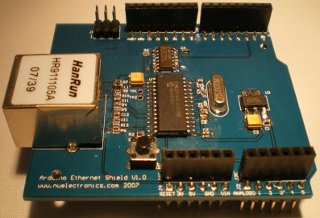

Photo: Nu Electronics

Shield URL: Ethernet Shield v1.0
Tags: ethernet, network
Maker: Nu Electronics

Ethernet shield that connects your Arduino to a LAN.

  • Uses Microchip's ENC28J60 SPI ethernet controller and compatible RJ45 socket.
  • Open-source TCP/IP protocol stack as an Arduino library.
  • Web client application to use Arduino as a distributed network sensor.
  • Directly plug onto your Arduino board, no soldering or fly-wiring needed.
  • Stackable - accepts prototype shield or any other boards with Arduino compatible interface.

Open Source: Unknown
License: Unknown
Source: Unknown
AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
The RJ45 jack is physically higher than the headers and may prevent some shields stacking on top neatly. Be careful to avoid short circuits with other shields.
