Nu Electronics Datalog & IO Shield v1.0

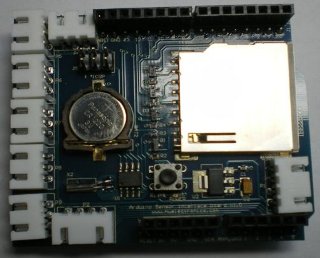

Photo: Nu Electronics

Shield URL: Datalog & IO Shield v1.0
Tags: rtc, sensor, sd, flash, storage
Maker: Nu Electronics

The Realtime Datalog & IO shield is a platform to interface various sensor and IO modules. It provides real-time clock and SD card interface for mass storage of sensor data.

Open Source: Unknown
License: Unknown
Source: Unknown
AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
Analog pins are brought out to the connectors on the shield.
D3,D4 and D6 are used for the RTC.
D5 (/CS), SCK,MISO,MOSI are used for the SD Card
D10 is not actually used, but must be an OUTPUT and High during setup of the SPI interface.
