Nu Electronics Color LCD & Joystick Shield

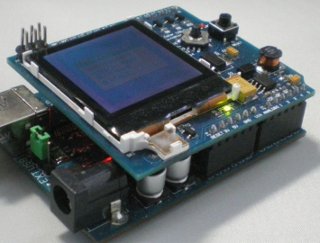

Photo: Nu Electronics

Shield URL: Color LCD & Joystick Shield
Tags: lcd, display, joystick, input
Maker: Nu Electronics

Color LCD & Joystick shield.

  • Uses the Nokia 6610 LCD, 4K color and 128x128 pixels.
  • Has a 5-direction Joystick , but only uses one ADC pin.

    Open Source: Unknown
    License: Unknown
    Source: Unknown
AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
D8: Backlight ON
D9: nRST LV
D10: nCD LV
D11: SDA LV
D12: SCL LV
A0: Joystick
