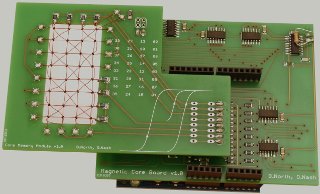

North And Nash Core Memory Shield


Photo: Ben North (CC BY-NC-SA 3.0)

Shield URL: Core Memory Shield
Tags: memory
Maker: North And Nash

32-bit core memory shield that can be used as non-volatile storage for the Arduino, or alternatively, any modern computing device with a USB port can read and write to magnetic core memory.

Open Source: Yes, OSHW-compliant
License: TAPR Open Hardware License
Source: www.corememoryshield.com

AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
Pins D2-D8 used for output to shield, D9 for input from shield.
