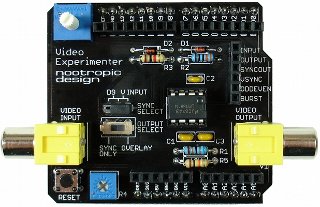

Nootropic Design Video Experimenter Shield

Shield URL: Video Experimenter Shield
Tags: video, output, display
Maker: Nootropic Design

The Video Experimenter shield is an Arduino shield that lets you do all kinds of experiments with video.

Features:

• Overlay text and graphics onto a video signal from a camera, DVR, DVD player, VCR or any other source of composite video.

• Capture low-res video image frames for display or video processing.

• Perform object detection for computer vision projects.

• Decode closed captioning or XDS (extended data services) data embedded in television broadcasts.

• Works with NTSC (North America) or PAL (rest of the world) television standards.

Open Source: Yes, OSHW-compliant
License: CC BY-SA 3.0
Source: nootropicdesign.com/ve/design.html

Note:
Pin D9 is only used when generating a video sync signal from the Arduino.
