NKC Electronics RGB LCD Shield

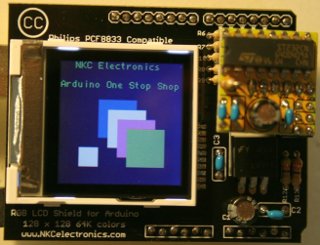

Photo: NKC Electronics

Shield URL: RGB LCD Shield
Tags: lcd, display
Maker: NKC Electronics

LCD module is a 128x128 pixel 65k color module with a LDS 183 LCD controller.

Open Source: Unknown
License: Unknown
Source: Unknown


				AREF
				GND
				D13 / SCK
				D12 / MISO
RESET				D11 / MOSI ~
3.3V				D10 / SS ~
5V				D9 ~
GND				D8
GND
VIN				D7
				D6 ~
A0				D5 ~
A1				D4
A2				D3 ~
A3				D2
A4				D1 / TX
A5				D0 / RX

Note:
Schematics indecipherable: pinout derived from looking at the code
