NKC Electronics Motor Control Shield

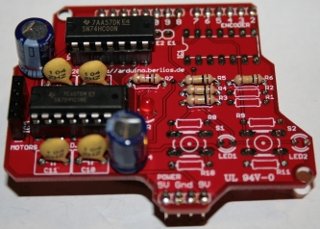

Photo: NKC Electronics

Shield URL: Motor Control Shield
Tags: motor, output
Maker: NKC Electronics

Lets you control motors from your Arduino board. The kit uses the SN754410NE motor driver.

  • drives 2 DC motors
  • Independent logic and motor voltage

Open Source: Unknown
License: Unknown
Source: Unknown

AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
D9: Motor B speed (PWM)
D10: Motor A speed (PWM)
D12: Motor B direction
D13: Motor A direction
