NKC Electronics Ethernet Shield

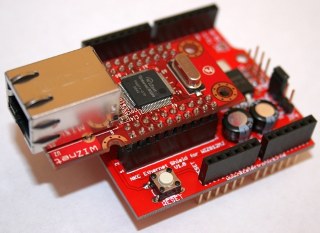

Photo: NKC Electronics

Shield URL: Ethernet Shield
Tags: ethernet, network
Maker: NKC Electronics

Based on the WIZ812MJ module by Wiznet, which uses the same W5100 chip as the official Arduino Ethernet shield.

Open Source: Unknown
License: Unknown
Source: Unknown
AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
The RJ45 jack is physically very high due to being mounted on a separate board on top of the shield. Be careful of clearance when trying to stack other shields on top. If the kit is assembled by soldering the WIZ812MJ module directly to the shield it reduces the height of the jack, but prevents the module being removed.
