Neuroelec High Power RGB LED Shield V2

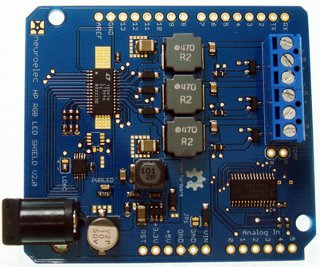

Photo: Neuroelec

Shield URL: High Power RGB LED Shield V2
Tags: led, output
Maker: Neuroelec

The shield has three independent channels which is ideal for high power RGB LED. It can power up to 10 LEDs (100 - 700mA) per channel. It supports two different dimming methods to control brightness of LEDs. Analog dimming have best energy efficiency while PWM dimming is better for RGB color mixing. Many shields can be stacked with it because it uses only two Arduino pins. The shield can also be operated without an Arduino.

Features:

  • 700mA 3 channel LED driver based on lt3496 (buck configuration)
  • I2C controlled 3 channel PWM (12bit) for dimming leds
  • dynamically adjustable current output ( can be used for analog dimming as well )
  • 42V input, 36V output. Drive up to 40W LEDs
  • 5V switching power supplier (up to 42V input)
  • many shields can be stacked and only use two I2C pins (A4, A5) from arduino
  • optional temp sensor for monitor led temp and PCB temp

Open Source: Yes, OSHW-compliant
License: CC BY-SA 3.0
Source: code.google.com/p/neuroelec/source/br...

AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
A4, A5 pins used for I2C communication
