Modern Device Fluxamasynth Shield

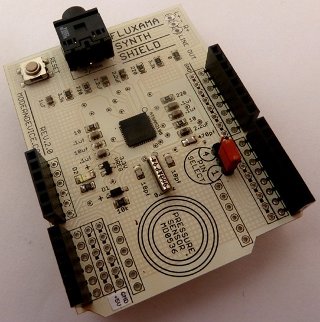

Photo: Modern Device

Shield URL: Fluxamasynth Shield
Tags: audio, output, sound
Maker: Modern Device

MIDI synthesizer on a shield: takes standard MIDI codes through a serial protocol. Based on Atmel's ATSAM2195 single-chip MIDI sound system.

The Fluxamasynth has a built-in wavetable with 128 general MIDI sounds and an additional set of 128 variations and dozens of percussion sounds. It can play music in 64-voice polyphony without effects or 38 voices with effects.

Features:

  • 14 bits of pitch bend range
  • Access to fine and coarse tuning in cents
  • Access to low level wavetable parameters
  • Stereo line level output
  • Master volume and per-channel volume control
  • 4-band Equalizer
  • Chorus, flange, delay effects
  • 8 Reverb effects
  • Spatial effects

Open Source: Unknown
License: Unknown
Source: Unknown
AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
Uses D1. Has jumper for D4 also.
