MightyOhm AVR HV Rescue Shield

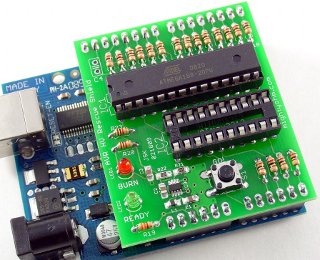

Photo: MightyOhm

Shield URL: AVR HV Rescue Shield
Tags: programmer
Maker: MightyOhm

The AVR HV Rescue Shield is a high voltage parallel mode fuse programmer for Atmel AVR microcontrollers.

It currently supports the ATmega48/88/168/328P series and the ATtiny2313.

Open Source: Unknown
License: Unknown
Source: Unknown


				AREF
				GND
				D13 / SCK
				D12 / MISO
RESET				D11 / MOSI ~
3.3V				D10 / SS ~
5V				D9 ~
GND				D8
GND
VIN				D7
				D6 ~
A0				D5 ~
A1				D4
A2				D3 ~
A3				D2
A4				D1 / TX
A5				D0 / RX

Did I make a mistake? Tell me!
