McLaughlin Engineering Thermocouple Shield

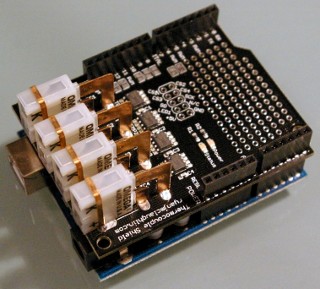

Photo: Ryan J McLaughlin

Shield URL: Thermocouple Shield
Tags:
Maker: McLaughlin Engineering

An Arduino shield designed to breakout the MAX6675 thermocouple to digital converter chip. This shield allows for interface to up to 4 K-type Thermocouples.

Open Source: Unknown
License: Unknown
Source: Unknown

AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
All Arduino pin traces are user configurable to be connected or disconnected via solder jumpers. A separate 2x5 pin header is provided for direct access to all pins on the MAX6675 chips.
